Our Rope Bags have been designed to carry a variety of rope diameters. Make these hardy and durable bags a part of your rescue equipment. We have a rope bag that is suitable for you no matter what your purpose is: fire rescue, RIT (Rapid Intervention Team), water rescue, rope access, or rigging in harsh environments. The rope bags we have to offer help with the handling of rope, resulting in a more efficient way of carrying your rope.
Just as no single type of rope will be appropriate for every life safety application, no one size will fit all conditions. A philosophy of “larger is better” leads to problems in handling and compatibility with other equipment, while a philosophy of “lighter is righter” may result in a rope too small. The compatibility of the components in the system you are using needs to be checked. Many conventional rope components such as pulleys and ascenders, for example, are designed for ropes with a diameter of 13mm or less.
|
| |
| Features |
Benefits |
| Material: 1000 Denier Cordura. Available colors are: Navy Blue, Royal Blue, Black, Gold, Forest Green, Red, Orange, Burgundy, Lime Green |
A durable and hardy fabric that is waterproof. |
| Black ¼” nylon drawstring with cord lock |
Allows you to close the bag securely. |
| Around Top: 8 - #1 grommets |
Use of grommets prevents fraying and allows the bag to be closed tightly. Brass grommets do not rust. |
| On the side 2” from bottom: 1 - #5 grommet (ID approx ¾”) |
The bottom grommet allows for drainage |

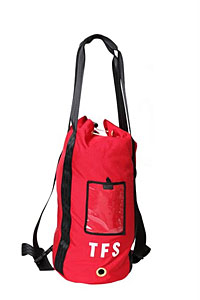

| ID pocket 7” from bottom of bag. 6.5” H x 5”W (open at top) with Velcro closure tab and nylon binding. |
Identifies the bag |
| Two carry handles made of 2” seatbelt web with an 8” rise folded at the grip with a rubber tube inside. |
Enables one to carry a heavy load |

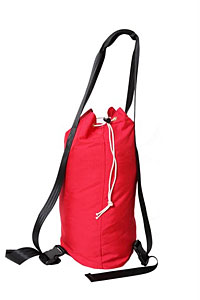

| Two shoulder straps made of 2” seatbelt web, spaced 10” apart, 34” in length. Side release buckles are 2” |
Seatbelt webbing provides strength, durability and long life. |
| Printing: White. Bottom of text, approx 2” from bottom of bag. |
Helps with bag identification |
|
| |
| Rope Bag Diameter and Purpose: |
| |
| The following rope bag tables will help select the correct rope bag. |
| |
| Rope Diameter |
Purpose |
Comment |
| 9mm |
Expedition caving, personal escape, fixed lines |
Excellent strength/ weight ratio |
| 10mm |
Caving, rope access, single person use |
Preferred by experienced professionals |
| 11mm |
Rigging, caving, rope access, and rescue |
A practical multi-purpose rope |
| 12.5mm |
Fire rescue, rigging in harsh environments |
A reliable staple on any fire truck |
| 16mm |
An extra heavy duty work horse |
Is easy to grip |
|
| |
| Rope Capacities and Max Rope Length Classic Static |
| |
| |
Rope
Diameter |
Bag Bottom Size |
Bag Height |
| Rope length |
10mm |
11mm |
12.5mm |
16mm |
|
|
| Personal |
12m |
|
|
|
5.5" * |
|
| Small |
80m |
70m |
46m |
30m |
10.5” |
14.5” |
| Medium |
120m |
100m |
75m |
61m |
10.5” |
21.5” |
| Large |
160m |
120m |
92m |
75m |
10.5” |
25” |
| X-Large |
250m |
200m |
170m |
140m |
16.5” |
24” |
| XX-Large |
285m |
230m |
200m |
160m |
16.5” |
28” |
|
| * base tapered to 8” |
| |
| Backpack Robe Bag Order Information: |
| |
| Order # |
Dimensions |
| ROPE-BPK-215.105.#5 |
21.5”H X 10.5”diameter |
| ROPE-BPK-240.165.#5 |
24.0”H X 16.5”diameter |
| ROPE-BPK-240.165.X.LG.RESCOM |
24.0”H X 16.5”diameter |
| ROPE-BPK-280.165.#5-XX.LG |
28.0”H X 16.5”diameter |
| ROPE-BPK-250.105.#5 |
25.0H x 10.5” diameter |
|
| |
|
